FM12WR0814-B05P103050000

Download page

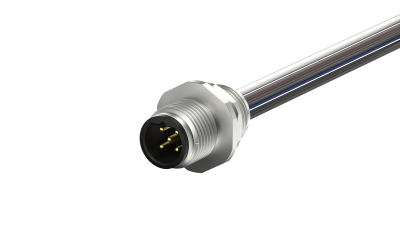

M12 male socket, unshielded, with wire L=500mm, IP68, M12X1.0, rear lock, B-code , 5 cores

Product Number：

FM12WR0814-B05P103050000

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

B coding

Number of Positions

5Circuits

Cable Length(mm)

L=500mm

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM12C010801-B05E0200000

M12 cable connector, female straight end, shielded, IP68, PUR, B-code, 5 cores, 2M

FM12C010805-B05E0200000

M12 cable connector, female straight end, unshielded, IP68, PUR, B-code, 5 cores, 2M

FM12C020802-B05C0200000

M12 cable connector, female end bend, shielded, IP68, angle 45°, PUR, B-code, 5 cores, 2M

FM12C050805-B05E0200000

M12 cable connector, double female straight end, unshielded, IP68, PUR, B-code, 5 cores, 2M

FM12C060802-B05C0200000

M12 cable connector, double female end bend, shielded, IP68, angle 45°, PUR, B-code, 5 cores, 2M

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$5.107049

10+

$4.687629

50+

$4.268210

100+

$3.922805

500+

$3.528058

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 2

MOQ： 4

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
