FM12WR1106-A06P103050000

Download page

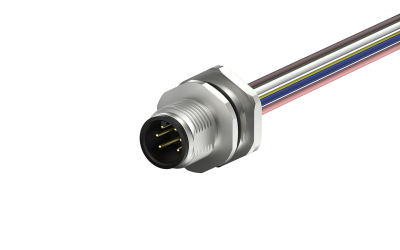

M12 male socket, unshielded, with wire L=500mm, IP68, M16X1.5, rear lock, A-code , 6 cores

Product Number：

FM12WR1106-A06P103050000

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

6Circuits

Cable Length(mm)

L=500mm

Electrical

Current(Max)

2A

Voltage(Max)

30V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM12C010801-A06E0200000

M12 cable connector, female straight end, shielded, IP68, PUR, A-code, 6 cores, 2M

FM12C010805-A06E0200000

M12 cable connector, female straight end, unshielded, IP68, PUR, A-code, 6 cores, 2M

FM12C020802-A06C0200000

M12 cable connector, female end bend, shielded, IP68, angle 45°, PUR, A-code, 6 cores, 2M

FM12C050805-A06E0200000

M12 cable connector, double female straight end, unshielded, IP68, PUR, A-code, 6 cores, 2M

FM12C060802-A06C0200000

M12 cable connector, double female end bend, shielded, IP68, angle 45°, PUR, A-code, 6 cores, 2M

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
