FM12WT1502-A05S103050000

Download page

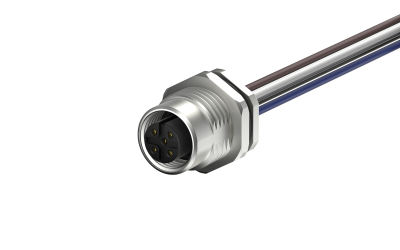

M12 female socket, unshielded, with wire L=500mm, IP68, PG9, front lock, A-code , 5 cores

Product Number：

FM12WT1502-A05S103050000

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

5Circuits

Cable Length(mm)

L=500mm

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM12C030801-A05E0200000

M12 cable connector, male straight end, shielded, IP68, PUR, A-code, 5 cores, 2M

FM12C030805-A05E0200000

M12 cable connector, male straight end, unshielded, IP68, PUR, A-code, 5 cores, 2M

FM12C080801-A05E0200000

M12 cable connector, double male straight end, shielding, IP68, PUR, A-code, 5 cores, 2M

FM12C080805-A05E0200000

M12 cable connector, double male straight end, unshielded, IP68, PUR, A-code, 5 cores, 2M

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$5.098911

10+

$4.680159

50+

$4.261408

100+

$3.916554

500+

$3.522436

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 2

MOQ： 4

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
