Where you are： TXGA Products M5 Circular Connector FM5WT0201 FM5WT0201-A02S104020000

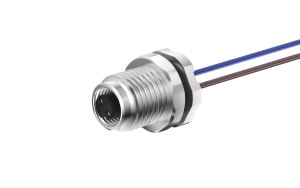

FM5WT0201-A02S104020000
Download page
Front fastened M7X0.75, Female Socket, A-Coded, 2Circuits, Socket Ep0.1μm, with lize L=200mm, free
Product Number：
FM5WT0201-A02S104020000
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
M5 Circular Connector
Style
Cable assembly
Gender
Female
Coding
A coding
Shielded
Non-shielded
Number of Positions
2Circuits
Contacts Type
socket
Colour
Black
Cable Length(mm)
L=200mm
 Electrical
Current(Max)
1A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M7x0.75
Durability (Mating Cycles Max.)
100
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{16.805499 | tradeCurrencySymbol}}
10+
{{15.560647 | tradeCurrencySymbol}}
50+
{{13.848976 | tradeCurrencySymbol}}
100+
{{12.75973 | tradeCurrencySymbol}}
500+
{{11.514879 | tradeCurrencySymbol}}
stock 5 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 100
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
