FM8ST0401-A07P104D00

Download page

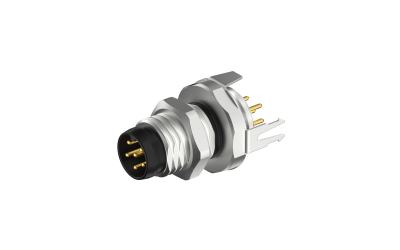

Front fastened M8X1.0 male Socket with section , A-Coded , 7Circuits , ST THT, with shield

Product Number：

FM8ST0401-A07P104D00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Features

Standard

Style

Socket

Gender

Male

Coding

A coding

Shielded

Shielded

Number of Positions

7Circuits

Contacts Type

pin

Thread Spec

M8

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

1.5A

Voltage(Max)

30V

Contact Resistance

3 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Fastening Method

Nut

Mounting Style

Through hole

Durability (Mating Cycles Max.)

100

Material

Surface Treatment

Plating

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-A07E0200000

M8X1.0 A Coded 7pin, female straight single end, shielded，PUR, cable length L=2M

FM8C020401-A07R0200000

M8X1.0 A Coded 7pin, female right angle single end, shield, PUR, cable length L=2M

FM8C050401-A07E0200000

M8X1.0 A Coded 7pin, female straight with shield , PUR cable length L=2M

FM8C060401-A07R0200000

M8X1.0 ACoded 7pin, female right angle , cable length L=2M

FM8C110401-A07R0200000

M8X1.0 A Coded 7pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-A07R0200000

M8X1.0 A Coded 7pin, male straight to female right angle , shield, PUR cable length L=2M

FM8C130401-A07E0200000

M8X1.0 A Coded 7pin, female straight to male straight , shield, PUR cable length L=2m

FM8C140401-A07R0200000

M8X1.0 A Coded 7pin, female right angle to male right angle with shield , PUR, cable length L=2m

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$3.628093

10+

$3.335782

50+

$3.009082

100+

$2.768355

500+

$2.493239

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 100

MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
