FM8ST0402-A07P104D00
Download page

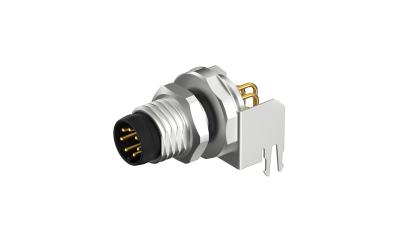

Front fastened M8X1.0 male Socket with section , A-Coded , 7Circuits , RA THT, with shield
Product Number:
FM8ST0402-A07P104D00
Status:
Active
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Shielded
Number of Positions
7Circuits
Contacts Type
pin
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M8x1.0
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{24.487173 | tradeCurrencySymbol}}
10+
{{22.514273 | tradeCurrencySymbol}}
50+
{{20.309267 | tradeCurrencySymbol}}
100+
{{18.684526 | tradeCurrencySymbol}}
500+
{{16.827678 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 100
MOQ: 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FM8ST0402-A07P104D00
Front fastened M8X1.0 male Socket with section , A-Coded , 7Circuits , RA THT, with shield
MPQ: 100
MOQ: 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
