FM8ST0409-A08P104D00

Download page

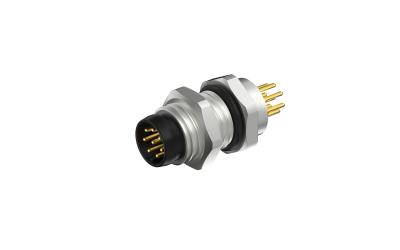

Front fastened M8X1.0 male Socket circle , A-Coded, 8Circuits , Through Hole solder

Product Number：

FM8ST0409-A08P104D00

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Features

Standard

Style

Socket

Gender

Male

Coding

A coding

Shielded

Non-shielded

Number of Positions

8Circuits

Contacts Type

pin

Thread Spec

M8

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

1.5A

Voltage(Max)

30V

Contact Resistance

3 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Fastening Method

Nut

Mounting Style

Through hole

Durability (Mating Cycles Max.)

100

Material

Surface Treatment

Plating

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-A08E0200000

M8X1.0 A Coded 8pin, female straight single end, shielded，PUR, cable length L=2M

FM8C020401-A08R0200000

M8X1.0 A Coded 8pin, female right angle single end, shield, PUR, cable length L=2M

FM8C050401-A08E0200000

M8X1.0 A Coded 8pin, female straight with shield , PUR cable length L=2M

FM8C060401-A08R0200000

M8X1.0 ACoded 8pin, female right angle with shield, PURcable length L=2M

FM8C110401-A08R0200000

M8X1.0 A Coded 8pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-A08R0200000

M8X1.0 A Coded 8pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A08E0200000

M8X1.0 A Coded 8pin, female straight to male straight , shield, PUR cable length L=2m

FM8C140401-A08R0200000

M8X1.0 A Coded 8pin, female right angle to male right angle with shield , PUR, cable length L=2m
