Where you are： TXGA → Products → M8 Circular Connector → FM8ST0410-A → FM8ST0410-A03P104D00

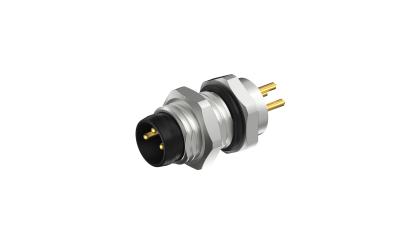

FM8ST0410-A03P104D00
Download page
Front fastened M8X1.0 male Socket double section , A-Coded , 3Circuits , Through Hole solder
Product Number：
FM8ST0410-A03P104D00
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Features
Standard
Style
Socket
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
3Circuits
Contacts Type
pin
Thread Spec
M8
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Fastening Method
Nut
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
 Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$2.433960
10+
$2.253667
50+
$2.005764
100+
$1.848007
500+
$1.667714
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 100
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time： In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FM8ST0410-A03P104D00
Front fastened M8X1.0 male Socket double section , A-Coded , 3Circuits , Through Hole solder
MPQ： 100
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
