FM8WT0718-A08S104050000

Download page

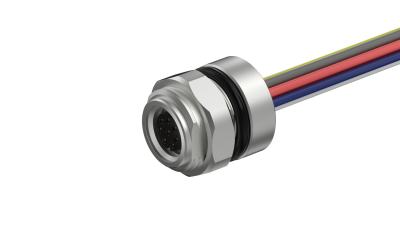

Front fastened M12X1.0 female Socket section, A-Coded, 8Circuits，Recessed Terminal，lite Length 500mm

Product Number：

FM8WT0718-A08S104050000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

8Circuits

Cable Length(mm)

L=500mm

Electrical

Current(Max)

1.5A

Voltage(Max)

30V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C030401-A08E0200000

M8X1.0 A Coded 8pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-A08R0200000

M8X1.0 A Coded 8pin, male right angle single end, shield, PUR, cable length L=2m

FM8C080401-A08E0200000

M8X1.0 A Coded 8pin, male straight with shield , PUR cable length L=2m

FM8C090401-A08R0200000

M8X1.0 A Coded 8pin, male right angle , cable length L=2m

FM8C110401-A08R0200000

M8X1.0 A Coded 8pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-A08R0200000

M8X1.0 A Coded 8pin, male straight to female right angle , shield, PUR cable length L=2m

FM8C130401-A08E0200000

M8X1.0 A Coded 8pin, female straight to male straight , shield, PUR cable length L=2m

FM8C140401-A08R0200000

M8X1.0 A Coded 8pin, female right angle to male right angle with shield , PUR, cable length L=2m
