FMNTD01-F08SS716YM00
Download page

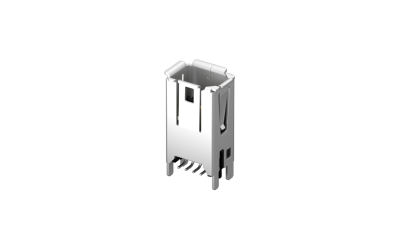

MINI IO D-shape straight female socket SMT, contact area Ep au 0.5μm, Reel package
Product Number:
FMNTD01-F08SS716YM00
Status:
Active
Category
Product Catalog
Connectors
Product System
Mini I/O Connector
Style
Socket
Gender
Female
Type
Type D
Shielded
Shielded
Number of Positions
8Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Performance Category
Cat.5e
Electrical
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
1500
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{10.586323 | tradeCurrencySymbol}}
150+
{{7.822982 | tradeCurrencySymbol}}
300+
{{6.655372 | tradeCurrencySymbol}}
900+
{{5.993727 | tradeCurrencySymbol}}
1800+
{{5.799126 | tradeCurrencySymbol}}
stock 396 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 150
MOQ: 150

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FMNTD01-F08SS716YM00
MINI IO D-shape straight female socket SMT, contact area Ep au 0.5μm, Reel package
