FMNTU03-F08BS716NM00
Download page

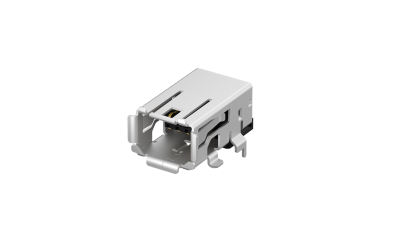

MINI IO U-shape RA female socket SMT, without peg, contact area Ep au 0.5μm, Reel package
Product Number:
FMNTU03-F08BS716NM00
Status:
Active
Category
Product Catalog
Connectors
Product System
Mini I/O Connector
Style
Socket
Gender
Female
Type
Type U
Shielded
Shielded
Number of Positions
8Circuits
Peg
Without peg
Orientation
Right angle(90°)
Colour
Black
Performance Category
Cat.5e
Electrical
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
1500
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
