Where you are： TXGA Products Pin Header/Female Header FPH10029 FPH10029-S20B1014250000M
FPH10029-S20B1014250000M
Download page
After clicking download, select "Save as PDF" in the printer options.

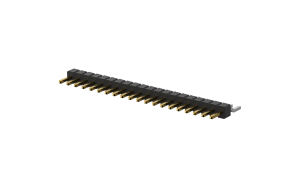

Pin Header 1mm, Single row, 20Circuits, 90° Angle(SMT), 1μ", PA6T
Product Number：
FPH10029-S20B1014250000M
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
1mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
