Where you are： TXGA Products Pin Header/Female Header FPH10032 FPH10032-D12S1014030407M
FPH10032-D12S1014030407M
Download page
After clicking download, select "Save as PDF" in the printer options.
Pin Header 1mm, Double row, 12Circuits, 180° Vertical(SMT), 1μ", PA6T
Product Number：
FPH10032-D12S1014030407M
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
1mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
1mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Black

Electrical

Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Mounting Style
SMT

Material

Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0

Packaging

Packaging
Reel

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

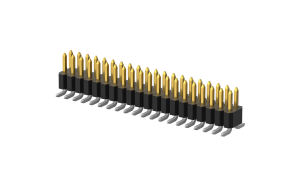

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FPH10032-D12S1014030407M
Pin Header 1mm, Double row, 12Circuits, 180° Vertical(SMT), 1μ", PA6T
MPQ： 1000
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
