FPH20064-D12B1014110000M
Download page
Pin Header, 2mm, Dual row, 12Circuits, Right angle(90°), SMT, 0.025μm, PA6T
Product Number:
FPH20064-D12B1014110000M
Status:
Active
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

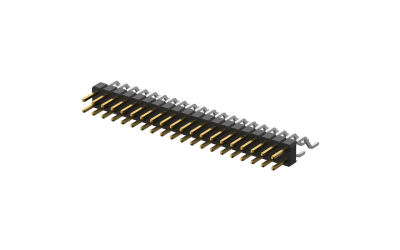

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{3.717036 | tradeCurrencySymbol}}
10+
{{3.221431 | tradeCurrencySymbol}}
50+
{{2.676266 | tradeCurrencySymbol}}
100+
{{2.440853 | tradeCurrencySymbol}}
500+
{{2.143491 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 20
MOQ: 20

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FPH20064-D12B1014110000M
Pin Header, 2mm, Dual row, 12Circuits, Right angle(90°), SMT, 0.025μm, PA6T
MPQ: 20
MOQ: 20

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
