FPH20067-S03S1014351115M Pin Header, 2mm, Single row, 3Circuits, Vertical(180°), SMT, 0.025μm, PA6T

FPH20067-S03S1014351115M

Download page

Pin Header, 2mm, Single row, 3Circuits, Vertical(180°), SMT, 0.025μm, PA6T

Product Number：

FPH20067-S03S1014351115M

Status：

Active

Product Introduction Data Download Product Compliance

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Pin Header

Style

Plug

Pitch

2mm

Row Option

Single row

Number of Positions

3Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

600V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

SMT

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

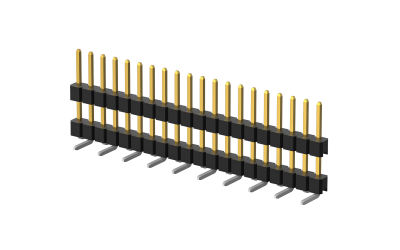

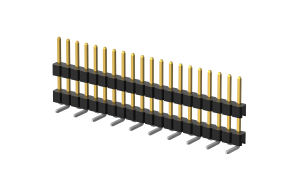

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
