Where you are： TXGA Products Pin Header/Female Header FPH25422-D16B100106B
FPH25422-D16B100106B
Download page
After clicking download, select "Save as PDF" in the printer options.

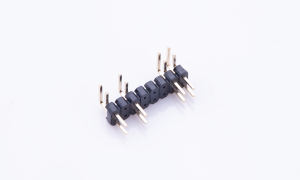

2.54mm 90°Angle Double row 16Circuits(DIP)(Canceled No.5-10, 13, 14Circuits)
Product Number：
FPH25422-D16B100106B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
