Where you are： TXGA Products Pin Header/Female Header FPH25463 FPH25463-T09B7011150115B
FPH25463-T09B7011150115B
Download page
After clicking download, select "Save as PDF" in the printer options.

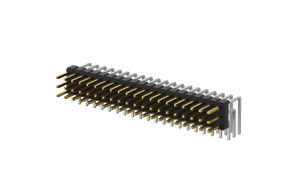

Pin Header 2.54mm, Three row, 9Circuits, 90° Angle(DIP), 1μ", PBT
Product Number：
FPH25463-T09B7011150115B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
3 rows
Number of Positions
9Circuits
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
