Where you are： TXGA Products Pin Header/Female Header FPH25471 FPH25471-D80S1014190809M

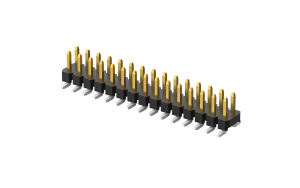

FPH25471-D80S1014190809M
Download page
After clicking download, select "Save as PDF" in the printer options.
Pin Header 2.54mm, Double row, 80Circuits, 180° Vertical(SMT), 1μ", PA6T
Product Number：
FPH25471-D80S1014190809M
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
80Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
