Where you are： TXGA → Products → Memory Module Socket → FPI10008 → FPI10008-F64S7305BKK

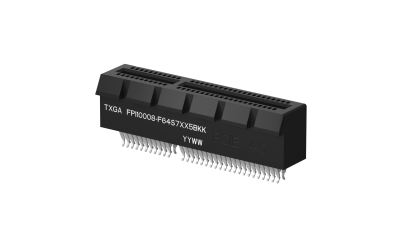

FPI10008-F64S7305BKK
Download page
PCIe, 1mm, Female, 64Circuits, Vertical(180°), Splint welding, Black, 0.75μm, Gen4.0 (16GT/S)
Product Number：
FPI10008-F64S7305BKK
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
PCIe
Style
Socket
Gender
Female
Version
Gen 4
Pitch
1mm
Number of Positions
64Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
1.1A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Splint welding
 Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.75μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{17.57401 | tradeCurrencySymbol}}
10+
{{16.72707 | tradeCurrencySymbol}}
50+
{{14.680297 | tradeCurrencySymbol}}
100+
{{13.6922 | tradeCurrencySymbol}}
500+
{{11.716007 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 60
MOQ： 1800

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FPI10008-F64S7305BKK
PCIe, 1mm, Female, 64Circuits, Vertical(180°), Splint welding, Black, 0.75μm, Gen4.0 (16GT/S)
MPQ： 60
MOQ： 1800

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
