Where you are： TXGA → Products → Network Connector (RJ45/RJ11) → FRJ45006 → FRJ45006-1101K6K0200

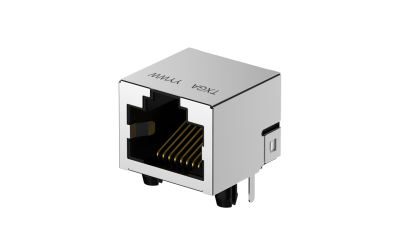

FRJ45006-1101K6K0200
Download page
RJ45 Connector, Right angle(90°), Through hole, 1Port, 0.025μm, Black, Non-LED
Product Number：
FRJ45006-1101K6K0200
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
8P8C
LED Status Indicator
No
Orientation
Right angle(90°)
Colour
Black
Contact Type
Round pin
 Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FRJ45006-1101K6K0200
RJ45 Connector, Right angle(90°), Through hole, 1Port, 0.025μm, Black, Non-LED
MPQ： 60
MOQ： 1020

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
