Where you are： TXGA Products Network Connector (RJ45/RJ11) FRJ45042 FRJ45042-1300K6K7100
FRJ45042-1300K6K7100
Download page
After clicking download, select "Save as PDF" in the printer options.

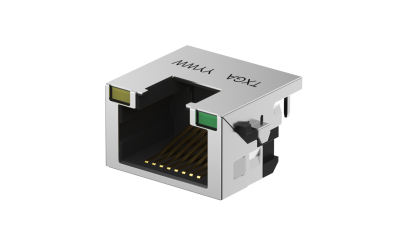

RJ45 Connector, Right angle(90°), Through hole, 1Port, Gold flash, Black, L:yellow, R:green,
Product Number：
FRJ45042-1300K6K7100
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
8P8C
LED Status Indicator
L:yellow,R:green
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
 Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PA10T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
8P8C
LED Status Indicator
L:yellow,R:green
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin

Electrical

Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC

Mechanical

Mounting Style
Through hole

Material

Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PA10T
Flammability Rating
UL94 V-0

Packaging

Packaging
Tray

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FRJ45042-1300K6K7100
RJ45 Connector, Right angle(90°), Through hole, 1Port, Gold flash, Black, L:yellow, R:green,
MPQ： 100
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
