Where you are： TXGA → Products → Network Connector (RJ45/RJ11) → FRJ45233 → FRJ45233-1703BKK0120

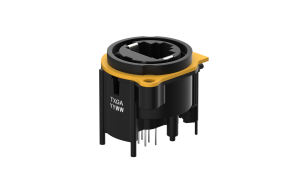

FRJ45233-1703BKK0120
Download page
RJ45 Connector, 180°Vertical, Through hole, 1Port, Black, Round panel, Without lock, CAT5e
Product Number：
FRJ45233-1703BKK0120
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
8P8C
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black
Contact Type
Square pin
 Electrical
Current(Max)
1.5A
Voltage(Max)
50V
Contact Resistance
10 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{16.746589 | tradeCurrencySymbol}}
10+
{{16.018477 | tradeCurrencySymbol}}
50+
{{13.436987 | tradeCurrencySymbol}}
100+
{{12.311722 | tradeCurrencySymbol}}
500+
{{10.855497 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 25
MOQ： 25

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FRJ45233-1703BKK0120
RJ45 Connector, 180°Vertical, Through hole, 1Port, Black, Round panel, Without lock, CAT5e
MPQ： 25
MOQ： 25

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
