Where you are： TXGA → Products → Solderless Terminal → FRT02 → FRT02-00125060SARD2
FRT02-00125060SARD2
Download page

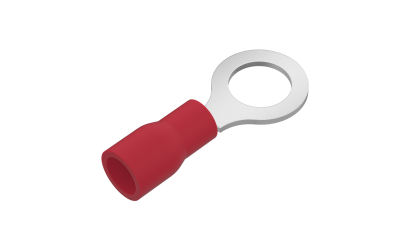

Ring tongue terminal, 1.5mm², Stud hole ∅6.4, PVC Pre-insulated, Red, Tin plated (RV1.25-6S)
Product Number：
FRT02-00125060SARD2
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Solderless Terminal
Product Category
Ring tongue terminal
Number of Positions
1Circuit
Diameter (mm)
∅6.4
Orientation
Vertical(180°)
Colour
Red
Insulation Style
Partially insulated
Applicable wires (AWG Max.)
16AWG
Applicable wires (mm² Max.)
1.5mm²
 Electrical
Current(Max)
19A
Voltage(Max)
600V
Operating Temperature Range
-25ºC~+85ºC
 Material
Material-Contact
Copper alloy
Plating
Matte tin plated
Material-Resin
PVC
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{1.117499 | tradeCurrencySymbol}}
10+
{{0.505171 | tradeCurrencySymbol}}
50+
{{0.420976 | tradeCurrencySymbol}}
100+
{{0.367397 | tradeCurrencySymbol}}
500+
{{0.33678 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1000
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FRT02-00125060SARD2
Ring tongue terminal, 1.5mm², Stud hole ∅6.4, PVC Pre-insulated, Red, Tin plated (RV1.25-6S)
MPQ： 1000
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
