FSFP0002-04F715S10
Download page

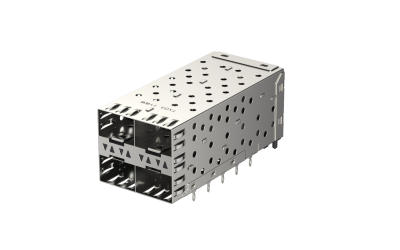

SFP, RA(90°), Through hole press-fit, 4Ports, With cage, Inner and outer lightpipes, 1Gbps
Product Number:
FSFP0002-04F715S10
Status:
Active
Category
Product Catalog
Connectors
Product System
Fiber Optic Transceiver Module
Product Category
Optical module connector
Style
Socket
Port Configuration 
4Ports
Shielded
Shielded
Pitch
0.8mm
Number of Positions
80Circuits
Orientation
Right angle(90°)
Colour
Black
Form factor
SFP
Light Pipes
With inner and outer lightpipes
Heat Sink
Without heat sink
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
80 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
1Gbps
Mechanical
Mounting Style
Through hole press-fit
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.375μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$7.548627
14+
$7.175856
42+
$6.119669
112+
$5.591576
140+
$4.908161
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 14
MOQ: 280

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
