FSFPA-01S107000-001
Download page

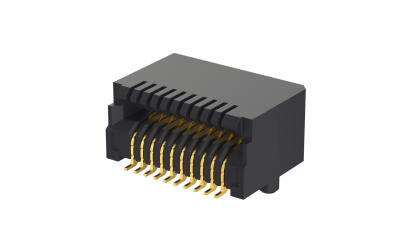

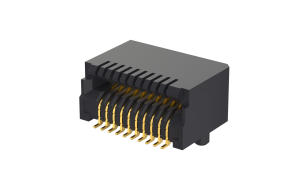

Optical module socket, SFP, 20Circuits, 0.375μm, SMT, Right angle(90°), 1Gbps
Product Number:
FSFPA-01S107000-001
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Fiber Optic Transceiver Module
Product Category
Optical module connector
Style
Socket
Port Configuration 
1Port
Shielded
Non-shielded
Pitch
0.8mm
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Form factor
SFP
Light Pipes
Without lightpipe
Heat Sink
Without heat sink
Electrical
Current(Max)
0.5A
Voltage(Max)
100V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
1Gbps
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.869810
600+
$0.570813
1800+
$0.456990
6000+
$0.450195
12000+
$0.443399
stock 400 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 600
MOQ: 1800

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
