Where you are： TXGA Products Fiber Optic Transceiver Module FSFPA001 FSFPA001-04F730S30
FSFPA001-04F730S30
Download page
After clicking download, select "Save as PDF" in the printer options.

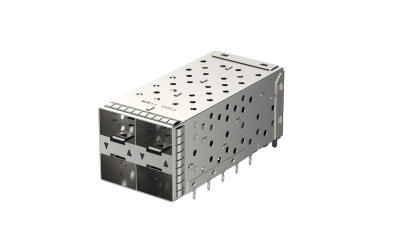

SFP+, RA(90°), Through hole press-fit, 4Ports, With cage, With outer lightpipes, 10Gbps
Product Number：
FSFPA001-04F730S30
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Fiber Optic Transceiver Module
Product Category
Optical module connector
Style
Socket
Port Configuration 
4Ports
Shielded
Shielded
Pitch
0.8mm
Number of Positions
80Circuits
Light Pipes
With outer lightpipes
Orientation
Right angle(90°)
Colour
Black
Heat Sink
Without heat sink
Form factor
SFP+
 Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
80 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10Gbps
 Mechanical
Mounting Style
Press-fit
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.75μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Fiber Optic Transceiver Module
Product Category
Optical module connector
Style
Socket
Port Configuration 
4Ports
Shielded
Shielded
Pitch
0.8mm
Number of Positions
80Circuits
Light Pipes
With outer lightpipes
Orientation
Right angle(90°)
Colour
Black
Heat Sink
Without heat sink
Form factor
SFP+

Electrical

Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
80 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10Gbps

Mechanical

Mounting Style
Press-fit

Material

Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.75μm
Material-Resin
LCP
Flammability Rating
UL94 V-0

Packaging

Packaging
Tray

Data Download

Product Drawings
3D Drawings
Product Specifications
EN_Spec FSFPA001.pdf English Version

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{67.854545 | tradeCurrencySymbol}}
10+
{{64.557968 | tradeCurrencySymbol}}
50+
{{54.668236 | tradeCurrencySymbol}}
100+
{{49.998086 | tradeCurrencySymbol}}
500+
{{43.954361 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 14
MOQ： 140

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
