Where you are： TXGA → Products → SIP Socket → FSI20001 → FSI20001-FD22S3008B

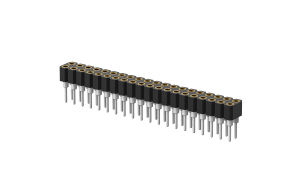

FSI20001-FD22S3008B
Download page
SIP Socket 2mm 180°Vertical Double row 22Circuits Female(DIP)
Product Number：
FSI20001-FD22S3008B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
SIP Socket
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
22Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
60V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Beryllium copper
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PPS
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FSI20001-FD22S3008B
SIP Socket 2mm 180°Vertical Double row 22Circuits Female(DIP)
MPQ： 1
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
