Where you are： TXGA → Products → SIP Socket → FSI25404 → FSI25404-MD08S1008B

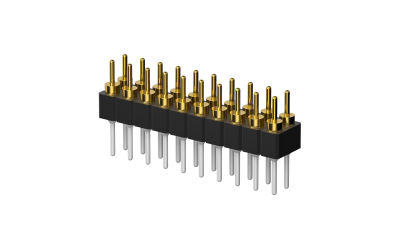

FSI25404-MD08S1008B
Download page
SIP Socket, 2.54mm, Male, Dual row, 8Circuits, Vertical(180°), Through hole, Gold flash
Product Number：
FSI25404-MD08S1008B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
SIP Socket
Style
Plug
Gender
Male
Pitch
2.54mm
Row Option
Dual row
Number of Positions
8Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
60V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PPS
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{2.500302 | tradeCurrencySymbol}}
10+
{{2.166929 | tradeCurrencySymbol}}
50+
{{1.800218 | tradeCurrencySymbol}}
100+
{{1.666868 | tradeCurrencySymbol}}
500+
{{1.441841 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1000
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FSI25404-MD08S1008B
SIP Socket, 2.54mm, Male, Dual row, 8Circuits, Vertical(180°), Through hole, Gold flash
MPQ： 1000
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
