Where you are： TXGA → Products → SIP Socket → FSI25404 → FSI25404-MD22S1018B

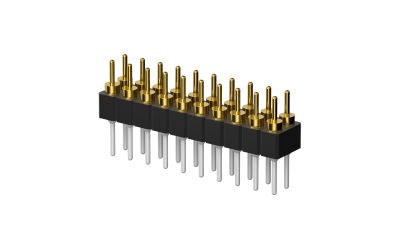

FSI25404-MD22S1018B
Download page
SIP Socket, 2.54mm, Male, Dual row, 22Circuits, Vertical(180°), Through hole, 0.025μm
Product Number：
FSI25404-MD22S1018B
Status：
Active
Data Download Product Introduction Product Compliance
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
SIP Socket
Style
Plug
Gender
Male
Pitch
2.54mm
Row Option
Dual row
Number of Positions
22Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
60V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PPS
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FSI25404-MD22S1018B
SIP Socket, 2.54mm, Male, Dual row, 22Circuits, Vertical(180°), Through hole, 0.025μm
MPQ： 500
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
