FSI25408-FD22S1018B SIP Socket, 2.54mm, Female, Dual row, 22Circuits, Vertical(180°), Through hole, 0.025μm

FSI25408-FD22S1018B

Download page

SIP Socket, 2.54mm, Female, Dual row, 22Circuits, Vertical(180°), Through hole, 0.025μm

Product Number：

FSI25408-FD22S1018B

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

SIP Socket

Style

Socket

Gender

Female

Pitch

2.54mm

Row Option

Dual row

Number of Positions

22Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

60V

Contact Resistance

10 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Beryllium copper

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PPS

Flammability Rating

UL94 V-0

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

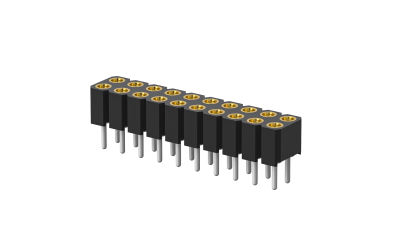

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
