Where you are： TXGA Products Single pair ethernet (SPE) Connector FSPESS02-02S116M00

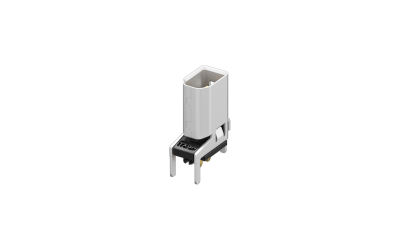

FSPESS02-02S116M00
Download page
After clicking download, select "Save as PDF" in the printer options.
SPE-T1 2pin Straight socket, terminal Ep au 0.5μm, Reel packaging
Product Number：
FSPESS02-02S116M00
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Single pair ethernet (SPE) Connector
Style
Socket
Gender
Male
Shielded
Shielded
Number of Positions
2Circuits
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
72V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Data Rate
1Gbps
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP20
Mounting Style
Through hole
Durability (Mating Cycles Max.)
750
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Material of Housing
Metal
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Single pair ethernet (SPE) Connector
Style
Socket
Gender
Male
Shielded
Shielded
Number of Positions
2Circuits
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black

Electrical

Current(Max)
4A
Voltage(Max)
72V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Data Rate
1Gbps

Mechanical

Waterproof / Dustproof
Yes
Ingress Protection
IP20
Mounting Style
Through hole
Durability (Mating Cycles Max.)
750

Material

Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Material of Housing
Metal

Packaging

Packaging
Reel

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{1.570189 | tradeCurrencySymbol}}
250+
{{1.160323 | tradeCurrencySymbol}}
500+
{{0.987141 | tradeCurrencySymbol}}
1500+
{{0.889004 | tradeCurrencySymbol}}
3000+
{{0.86014 | tradeCurrencySymbol}}
stock 342 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 250
MOQ： 250

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
