FST0718-MSS3013K6M
Download page

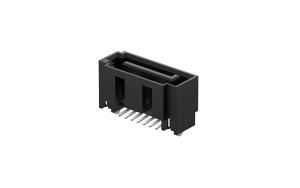

SATA Male Vertical(180°) 7ircuits (SMT)
Product Number:
FST0718-MSS3013K6M
Status:
Active
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
SATA
Style
Socket
Gender
Male
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
800 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.312476
10+
$0.294706
50+
$0.259164
100+
$0.241394
500+
$0.205852
stock 989 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 350
MOQ: 1050

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
