FT10007-F8H

Download page

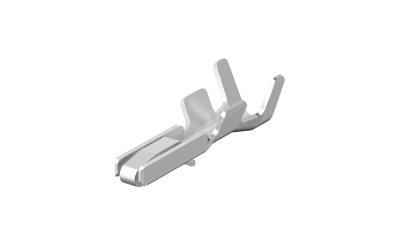

Wire to board Terminal 1mm, Female, Tin plated

Product Number：

FT10007-F8H

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Terminal

Gender

Female

Pitch

1mm

Number of Positions

1Circuit

Orientation

Vertical(180°)

Applicable wires (AWG Max.)

28AWG

Electrical

Current(Max)

1A

Voltage(Max)

50V

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

Riveting

Material

Material-Contact

Copper alloy

Plating

Bright tin plated

Packaging

Packaging

Reel

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FHG10008-D04M2WHB

Wire to board housing 1mm, 4 Circuits, Dual row

FHG10008-D06M2WHB

Wire to board housing 1mm, 6 Circuits, Dual row

FHG10008-D08M2WHB

Wire to board housing 1mm, 8 Circuits, Dual row

FHG10008-D10M2WHB

Wire to board housing 1mm, 10 Circuits, Dual row

FHG10008-D12M2WHB

Wire to board housing 1mm, 12 Circuits, Dual row

FHG10008-D14M2WHB

Wire to board housing 1mm, 14 Circuits, Dual row

FHG10008-D16M2WHB

Wire to board housing 1mm, 16 Circuits, Dual row

FHG10008-D18M2WHB

Wire to board housing 1mm, 18 Circuits, Dual row

FHG10008-D20M2WHB

Wire to board housing 1mm, 20 Circuits, Dual row

FHG10008-D22M2WHB

Wire to board housing 1mm, 22 Circuits, Dual row

FHG10008-D24M2WHB

Wire to board housing 1mm, 24 Circuits, Dual row

FHG10008-D26M2WHB

Wire to board housing 1mm, 26 Circuits, Dual row

FHG10008-D28M2WHB

Wire to board housing 1mm, 28 Circuits, Dual row

FHG10008-D30M2WHB

Wire to board housing 1mm, 30 Circuits, Dual row

FHG10008-D32M2WHB

Wire to board housing 1mm, 32 Circuits, Dual row

FHG10008-D34M2WHB

Wire to board housing 1mm, 34 Circuits, Dual row

FHG10008-D36M2WHB

Wire to board housing 1mm, 36 Circuits, Dual row

FHG10008-D38M2WHB

Wire to board housing 1mm, 38 Circuits, Dual row

FHG10008-D40M2WHB

Wire to board housing 1mm, 40 Circuits, Dual row

FHG10008-D42M2WHB

Wire to board housing 1mm, 42 Circuits, Dual row

FHG10008-D44M2WHB

Wire to board housing 1mm, 44 Circuits, Dual row

FHG10008-D46M2WHB

Wire to board housing 1mm, 46 Circuits, Dual row

FHG10008-D48M2WHB

Wire to board housing 1mm, 48 Circuits, Dual row

FHG10008-D50M2WHB

Wire to board housing 1mm, 50 Circuits, Dual row
