Where you are： TXGA Products Terminal Block FTB50808 FTB50808-F10S2N1B
FTB50808-F10S2N1B
Download page
After clicking download, select "Save as PDF" in the printer options.

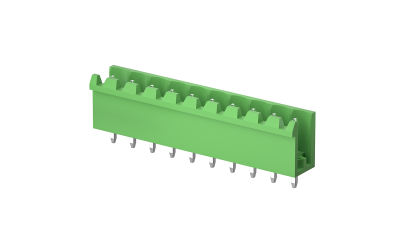

Terminal block 5.08mm, Socket, 10Circuits, 180° Vertical(DIP), Green
Product Number：
FTB50808-F10S2N1B
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Terminal Block
Style
Socket
Gender
Male
Pitch
5.08mm
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Green
 Electrical
Current(Max)
10A
Voltage(Max)
300V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
2500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Terminal Block
Style
Socket
Gender
Male
Pitch
5.08mm
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Green

Electrical

Current(Max)
10A
Voltage(Max)
300V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
2500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Mounting Style
Through hole

Material

Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0

Packaging

Packaging
PE Bag

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FTB50808-F10S2N1B
Terminal block 5.08mm, Socket, 10Circuits, 180° Vertical(DIP), Green
MPQ： 500
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
