FTB50811-F05B2GNB
Download page
Terminal block, 5.08mm, Plug, 5Circuits, Vertical(180°), Screw locking, Green
Product Number:
FTB50811-F05B2GNB
Status:
Active
Category
Product Catalog
Connectors
Product System
Terminal Block
Style
Plug
Gender
Female
Pitch
5.08mm
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
Green
Electrical
Current(Max)
15A
Voltage(Max)
300V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Screw locking
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

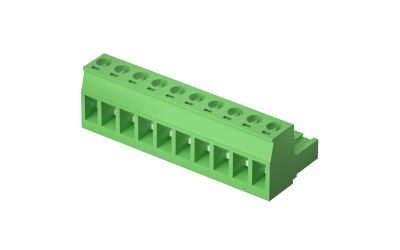

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{3.367149 | tradeCurrencySymbol}}
20+
{{2.719599 | tradeCurrencySymbol}}
100+
{{2.438178 | tradeCurrencySymbol}}
500+
{{2.209648 | tradeCurrencySymbol}}
1000+
{{1.885519 | tradeCurrencySymbol}}
stock 92 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 500
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FTB50811-F05B2GNB
Terminal block, 5.08mm, Plug, 5Circuits, Vertical(180°), Screw locking, Green
MPQ: 500
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
