Where you are： TXGA → Products → Heavy-duty Connector (Rectangle) → FTH003 → FTH003-0400M4E0

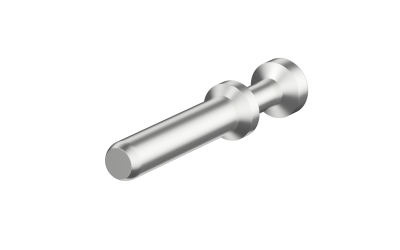

FTH003-0400M4E0
Download page
Crimp contact, 40A, Wire range 1.5mm²(16 AWG), Male, Silver plated
Product Number：
FTH003-0400M4E0
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Heavy-duty connector
Style
Terminal
Gender
Male
Applicable wires (AWG Max.)
16AWG
Applicable wires (mm² Max.)
1.5mm²
 Electrical
Current(Max)
40A
Contact Resistance
1 mΩ Max
Operating Temperature Range
-40ºC~+125ºC
 Mechanical
Mounting Style
Riveting
Durability (Mating Cycles Max.)
500
 Material
Material-Contact
Copper alloy
Plating
Silver plated
Plating Thickness
3μm
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{5.908453 | tradeCurrencySymbol}}
10+
{{5.65848 | tradeCurrencySymbol}}
50+
{{4.794937 | tradeCurrencySymbol}}
100+
{{3.590522 | tradeCurrencySymbol}}
500+
{{3.476898 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 100
MOQ： 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FTH003-0400M4E0
Crimp contact, 40A, Wire range 1.5mm²(16 AWG), Male, Silver plated
MPQ： 100
MOQ： 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
