Where you are： TXGA Products EMI Filter Plate FTM25402 FTM25402-S02S412AA6A0

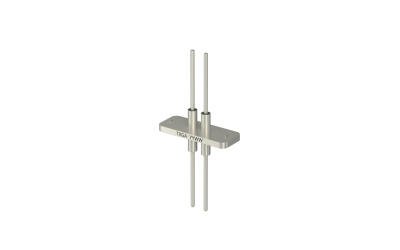

FTM25402-S02S412AA6A0
Download page
Filter Plate: 2 Circuits , 2.54mm Pitch, Single row ，1000 pF±20%，Pin Length 28mm
Product Number：
FTM25402-S02S412AA6A0
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
EMI Filter Plate
Pitch
2.54mm
Row Option
Single row
Number of Positions
2Circuits
Orientation
Vertical(180°)
 Electrical
Current(Max)
1A
Voltage(Max)
100V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Filter Circuits
C
Capacitance Value
1000pF
Capacitance Tolerance
±20%
 Mechanical
Panel Mount Feature
Bolt-in
 Material
Material-Contact
Brass
Plating
Silver plated
Plating Thickness
3μm
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
EMI Filter Plate
Pitch
2.54mm
Row Option
Single row
Number of Positions
2Circuits
Orientation
Vertical(180°)

Electrical

Current(Max)
1A
Voltage(Max)
100V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Filter Circuits
C
Capacitance Value
1000pF
Capacitance Tolerance
±20%

Mechanical

Panel Mount Feature
Bolt-in

Material

Material-Contact
Brass
Plating
Silver plated
Plating Thickness
3μm

Packaging

Packaging
Tray

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{91.404933 | tradeCurrencySymbol}}
100+
{{69.920868 | tradeCurrencySymbol}}
500+
{{52.425341 | tradeCurrencySymbol}}
1000+
{{45.246075 | tradeCurrencySymbol}}
2000+
{{44.578236 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FTM25402-S02S412AA6A0
Filter Plate: 2 Circuits , 2.54mm Pitch, Single row ，1000 pF±20%，Pin Length 28mm
MPQ： 1
MOQ： 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
