FTM45001-S04S412AA8A0
Download page

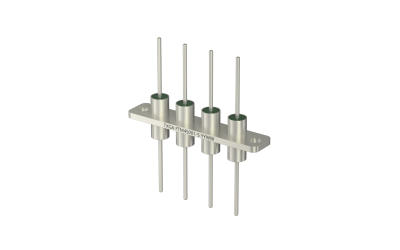

Filter Plate: 4Circuits , 4.5mm Pitch, Single row ,4000 pF,Pin Length 28mm
Product Number:
FTM45001-S04S412AA8A0
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
EMI Filter Plate
Pitch
4.5mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Vertical(180°)
Electrical
Current(Max)
1A
Voltage(Max)
100V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Filter Circuits
C
Capacitance Value
4000pF
Capacitance Tolerance
+50 / -20%
Mechanical
Fastening Method
Bolt-in
Material
Material-Contact
Brass
Plating
Silver plated
Plating Thickness
3μm
Packaging
Packaging
Tray
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$21.069639
100+
$16.074682
500+
$12.344030
1000+
$10.682333
2000+
$10.524076
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
