FWF10012-D40S23NAM
Download page

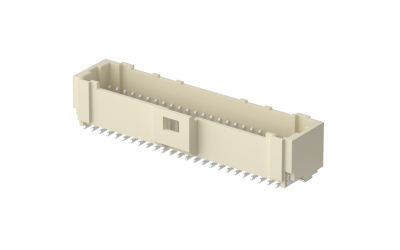

Wafer 1mm, 40Circuits, Vertical(180°), SMT
Product Number:
FWF10012-D40S23NAM
Status:
Active
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
