Where you are： TXGA → Products → Wire to Board/Wire Connector → FWF20030 → FWF20030-D18S23NAM

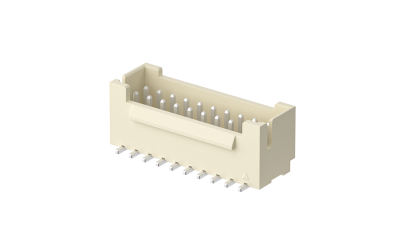

FWF20030-D18S23NAM
Download page
Wafer 2mm, 18Circuits, Vertical(180°), SMT
Product Number：
FWF20030-D18S23NAM
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
18Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FWF20030-D18S23NAM
Wafer 2mm, 18Circuits, Vertical(180°), SMT
MPQ： 600
MOQ： 600

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
