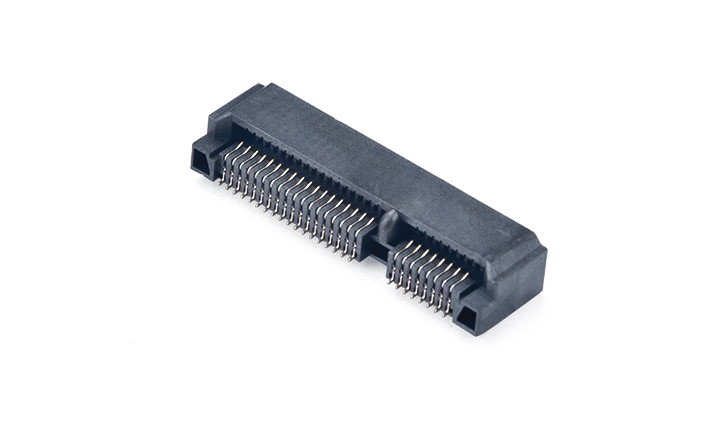

TXGA MINI PCI-E slot, more flexible hardware expansion interface for PCB board

MINI PCI-E slot is a hardware expansion interface widely used in various industrial control motherboards. Through the MINI PCI-E slot, the industrial control motherboard can be equipped with various hardware such as Bluetooth modules, 4G modules, wireless network cards, and solid-state hard disks to meet the functional expansion needs of users.
In response to the flexible insertion requirements of industrial PC wireless network cards, the MINI PCI-E slot developed and produced by TXGA has a height of only 4mm, which can effectively reduce the space requirements for wireless network card slots within the device, reserve more functional expansion space for the device, and achieve flexible expansion of industrial PC main board functions while adapting to the highly integrated design trend of industrial main boards.
Product height is only 4mm
Gold plated contacts, oxidation and corrosion resistance, outstanding contact performance
Data transfer rate up to 4GB/S
Supports - 55 º C to+105 º C work environments
