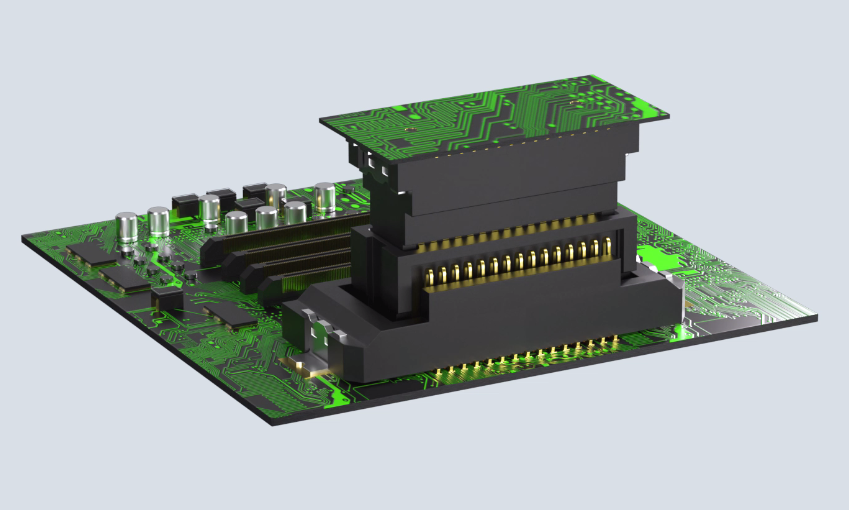

TXGA floating type board-to-board connector achieves flexible and reliable electrical connection for industrial equipment under strong vibration environment

Floating board to board connector is a kind of board to board connector using floating floating structure design, in use can be more flexible than the general rigid connector, to ensure that the connector can be in a variety of adverse conditions can also achieve reliable connection.

TXGA develops and produces board-to-board connectors. The spring mechanism inside the product can mitigate the impact, absorb environmental vibration, effectively reduce the vibration of the connector caused by deformation and wear. At the same time, the floating board-to-board connector can also eliminate the tolerance dislocation during installation, so that PCB board can easily accommodate multiple connectors, improve the design flexibility of PCB board. Flexible and reliable electrical connection for industrial equipment under strong vibration environment.

Product characteristics

Mitigate impact and absorb environmental vibration

Eliminate accumulated tolerances during assembly

The product can be inserted and removed more than 30 times

Product combination height 12.75mm

It can operate at -40ºC to +105ºC

Industry application

Products are widely used in power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.
