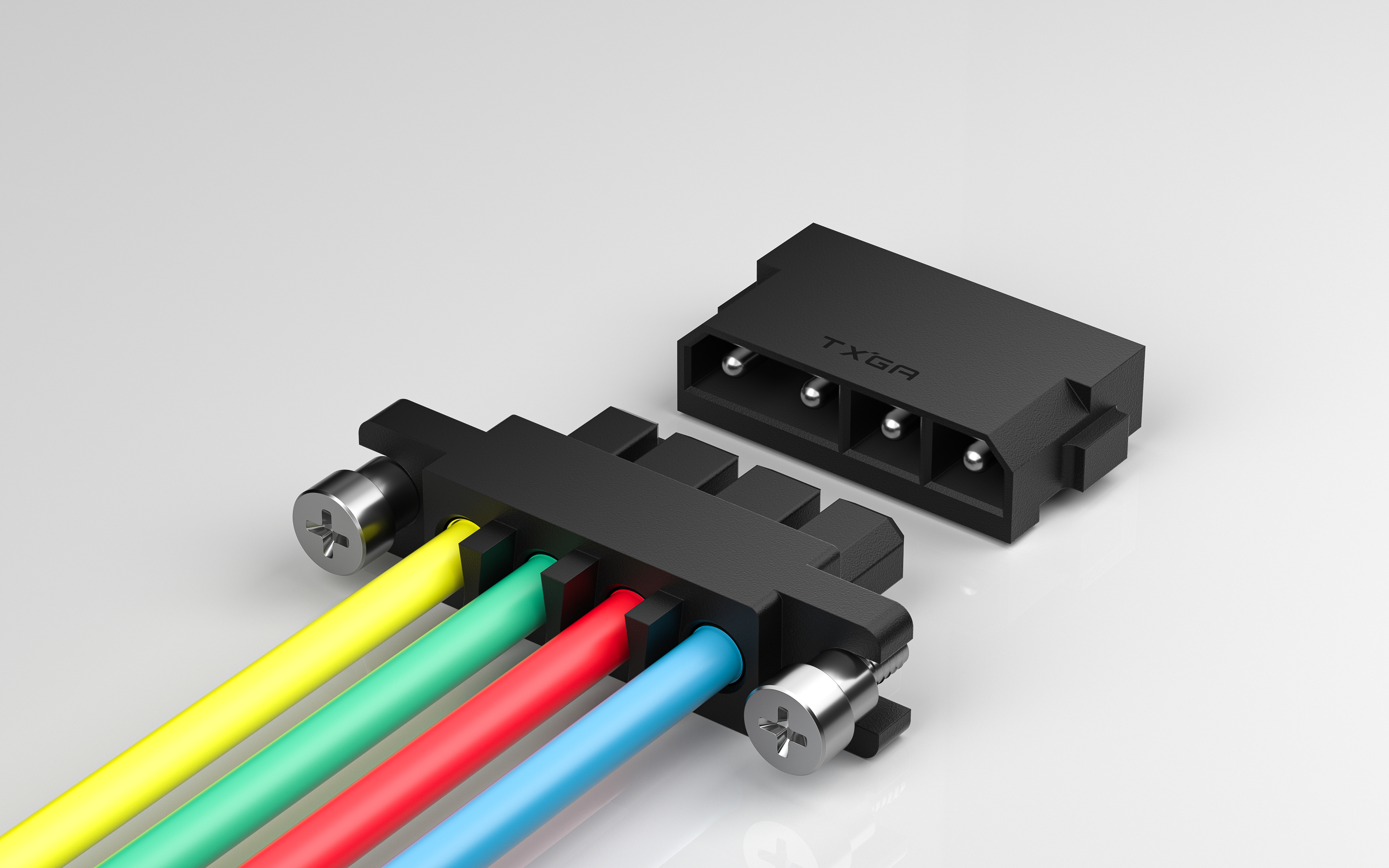

In the current booming development of the new energy vehicle industry, charging piles, as a key infrastructure supporting this green mode of transportation, have attracted much attention for their performance and safety. The power connector of the charging station module, as the core component for current transmission inside the charging station, directly affects the charging efficiency and equipment safety in terms of its performance. The TXGA charging station module power connector, with its excellent high current transmission capability and safe and reliable heat-resistant and flame-retardant design, provides a safe and reliable interconnection solution for new energy charging station equipment, promoting the popularization and development of new energy vehicle charging equipment.
Product parameters
Maximum current per contact: up to 75.00A, ensuring stable transmission in high-power charging scenarios and meeting fast charging requirements.
Voltage carrying capacity: Supports a maximum voltage of 1000V, providing a solid guarantee for high-voltage charging technology.
Contact resistance: controlled within 12 m Ω Max, effectively reducing energy loss and improving charging efficiency.
Insulation resistance: not less than 3000 M Ω, ensuring electrical isolation performance and ensuring safe use.
Voltage endurance: It can withstand a voltage endurance test of 3000V AC r.m.s, demonstrating excellent electrical stability.
Product advantages
Crown spring terminal structure: Adopting a unique crown spring terminal design, it increases the contact area of the terminal and reduces the contact impedance, ensuring efficient and stable current transmission.
Screw locking fixation: Both sides are fixed by screw locking method, which enhances the firmness of interconnection and effectively prevents loosening or detachment caused by vibration or external force.
Heat resistant and flame-retardant shell: The shell material has excellent heat resistant and flame-retardant properties, and can work stably in extreme high and low temperature environments from -55 º C to+125 º C, ensuring the long-term reliability of the connector.
The TXGA charging station module power connector has been widely used in the field of new energy vehicle charging station equipment due to its excellent performance and reliable safety.
