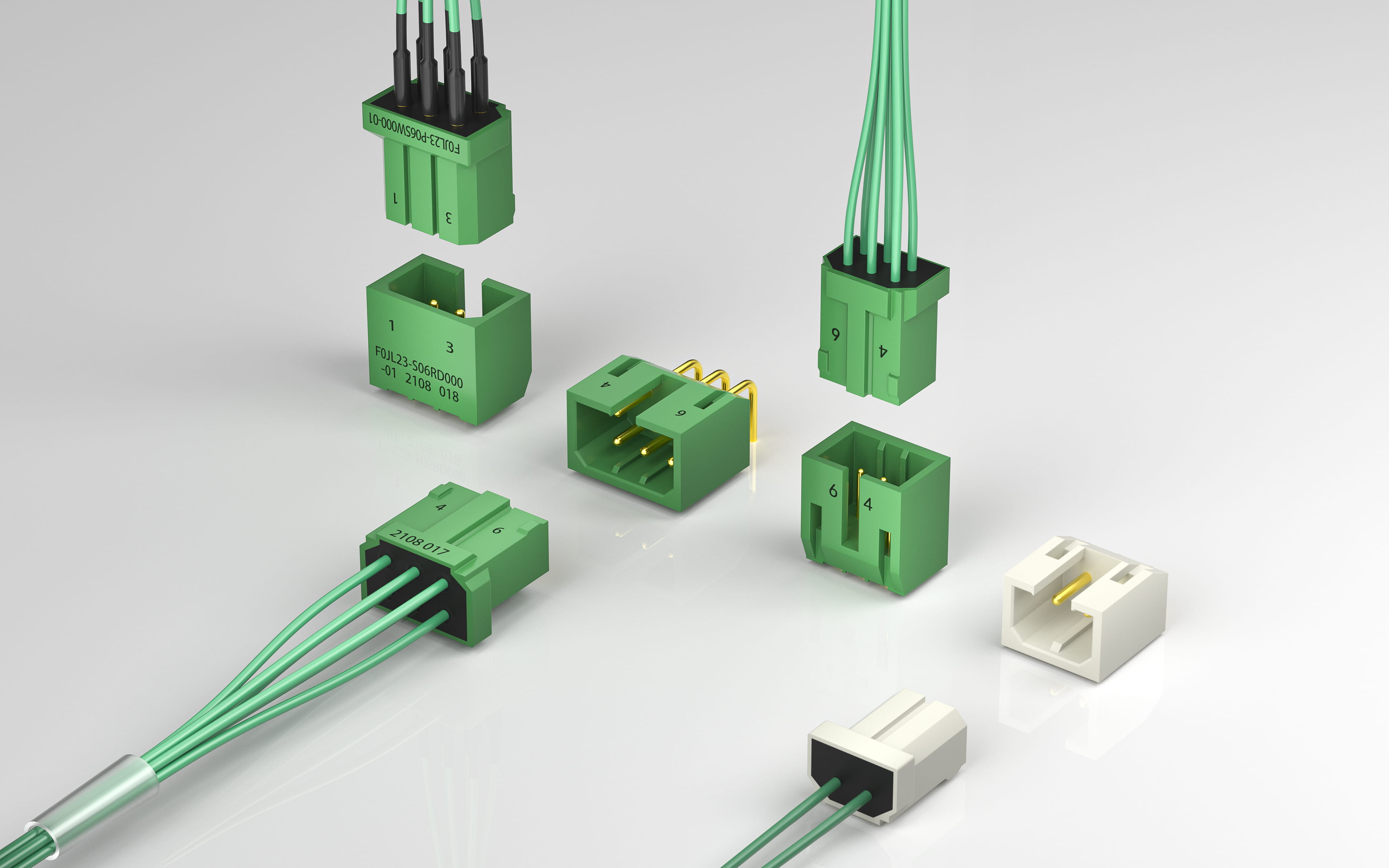

TXGA printed circuit connectors are available in models such as JL4, JL23, JL24, JL27, JL35, etc. The connector plug adopts a hyperbolic wire spring gold-plated socket structure.When inserting, the envelope surface composed of the wire spring and the ring will tightly wrap around the pin inside the socket, forming a multi wire contact. Under the flexible clamping effect of the wire spring on the pin, the terminal insertion and removal force is uniform and gentle, even in harsh environments with strong impact and vibration, the connector can maintain a reliable connection state.
The socket of TXGA printed circuit connector includes two types: straight end and bent end. The installation methods include through-hole welding and wire bonding, with installation directions of 90 ° and 180 °. It can be used with single head and double head wire harnesses to achieve highly integrated modular design for PCB boards, greatly improving the flexibility and efficiency of circuit layout.
In extreme temperature environments ranging from -65 ℃ to 125 ℃, JL4, JL23, JL24, JL27, and JL35 series connectors can still operate stably. In addition, the TXGA JL series products have successfully passed the 96 hour salt spray test, demonstrating excellent corrosion resistance and further ensuring the reliability and stability of the products in different environments, helping users cope with various harsh application scenarios.
