High performance servers are mainly used to process massive amounts of data and run various complex applications, therefore they have extremely high requirements for processing and response speed. As an important connection interface between servers and external devices, the performance of SCSI connectors can directly determine the speed and stability of data transmission.

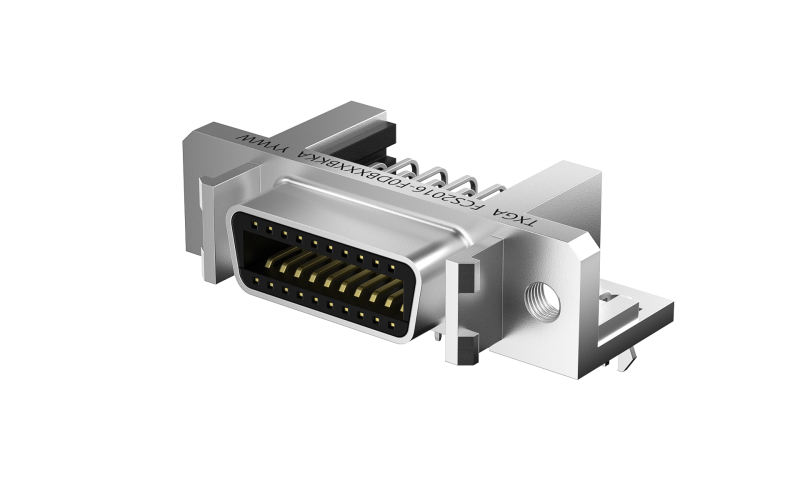

The TXGA FCS2016 SCSI connector has high-speed transmission capability, providing a stable and reliable data transmission channel for high-performance servers, ensuring fast and accurate data transfer between servers and external devices. At the same time, the product adopts a high-density design to tailor a data interconnection solution for compact servers, effectively saving space. In addition, it supports hot swapping function, greatly improving the convenience and reliability of use.
Product Features
Support simultaneous operation of multiple devices
The TXGA FCS2016 SCSI connector has powerful multi device connectivity and supports servers to connect multiple external devices simultaneously. This allows the server to process multiple tasks in parallel, flexibly and efficiently completing data transmission and processing tasks, greatly improving the server's work efficiency and data processing capabilities.
High density design
The contact spacing of the product is only 1.27mm, and the high-density design allows the connector to provide more contacts in a limited space, meeting the needs of compact servers for fast data transmission.
Support hot swapping
The TXGA FCS2016 SCSI connector supports hot swappable functionality. During normal server operation, users can plug and unplug the connector at any time without the need to shut down or restart the server to easily connect new devices. This feature not only improves the convenience of device connection, but also reduces server downtime caused by device plugging and unplugging, further enhancing the reliability and stability of the server.
Flexible layout
The product adopts a 90 degree bending plug design, allowing the connector to be flexibly installed and laid out in a limited space. No matter how compact the internal space of the server is, users can easily find a suitable installation location, greatly improving the convenience of user use and saving space resources for users.
Product Parameters
Current (maximum): 1A
Voltage (maximum): 250V
Contact resistance: 30 m Ω Max
Insulation resistance: 500 M Ω Min
Voltage endurance: 500V AC r.m.s
Flame retardant rating: UL94 V-0
Application Industry
server
storage device
Industrial control equipment
