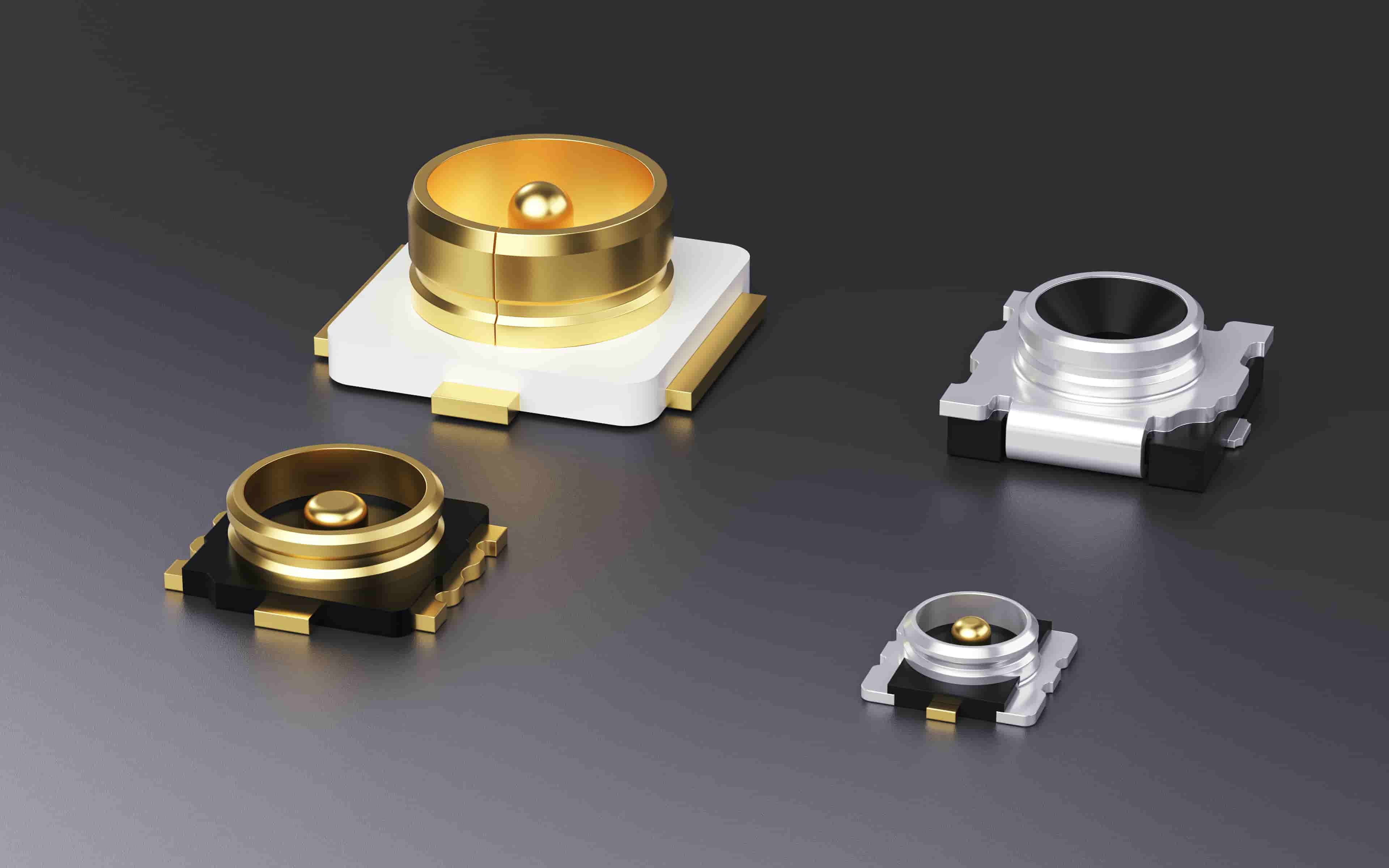

Efficient, Micro, and Multi Protocol Compatible - TXGA MCRF RF Connector for Accelerating Communication Equipment

The TXGA MCRF connector covers frequencies from 0 to 11 GHz, occupies an area as low as 1.2 × 1.2mm, and has a minimum height of only 0.8mm. It is an ideal interconnect solution for devices with limited space and high signal transmission rate requirements.
The maximum standing wave ratio of the product is 1.5 Max, which not only supports high-frequency data transmission but also reduces energy loss, providing high-quality interconnection guarantee for communication equipment.

Core product advantages
High frequency and high-speed transmission
The 0-11GHz broadband coverage brings greater bandwidth, enabling the transmission of large amounts of data within a single time window, fully meeting the transmission needs of various high-speed communication devices.

Fully protocol compatible
Native adaptation to Wi Fi and Bluetooth ®、 Mainstream wireless communication protocols such as 5G and 4G LTE ensure stable, reliable, efficient, and uninterrupted signal transmission.

Ultra micro volume
1.2 × 1.2mm extremely small footprint, paired with a ultra-low combination height of 0.8mm, perfectly suitable for small-sized devices with strict requirements for space and weight.
low
High loss and stability
The low standing wave ratio of 1.5 Max can significantly reduce signal interference, lower equipment energy consumption, comprehensively improve transmission efficiency and signal integrity, and ensure long-term stability of the connection.

Key product parameters
Characteristic impedance: 50 Ω
Maximum standing wave ratio: 1.5 Max
Maximum operating voltage: 60V
Insulation resistance: 500 M Ω Min
Voltage endurance: 200V AC r.m.s
Maximum frequency range: 11GHz

Adapt to application scenarios
Wireless communication devices, medical electronic devices, industrial drones, portable intelligent terminals, sensing and monitoring equipment, testing and measuring instruments
