F00MPC-S14RD300-01
Download page

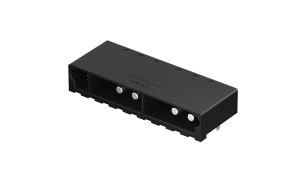

Charging pile module power connector, Socket, 14Circuits, 90°Angle, DC, 30KW
Product Number:
F00MPC-S14RD300-01
Status:
Active
Category
Product Catalog
Connectors
Product System
Charging Pile Module Power Connector
Style
Socket
Gender
Male
Number of Positions
14Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
75A
Voltage(Max)
1000V
Contact Resistance
12 mΩ Max
Insulation Resistance
3000 MΩ Min
Withstanding Voltage
3000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Current Type
DC
Mechanical
Mounting Style
Through hole
Material
Plating
Silver plated
Plating Thickness
3μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
