F00SMA-P50P0SSP-02
Download page

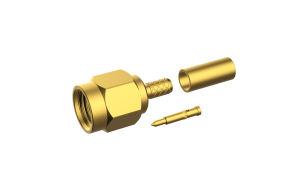

SMA, Plug, 50Ohm, pin, 180° Vertical, Nut lock, Crimp
Product Number:
F00SMA-P50P0SSP-02
Status:
Active
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
SMA
Style
Plug
Number of Positions
1Circuit
Contacts Type
pin
Orientation
Vertical(180°)
Colour
White
Electrical
Voltage(Max)
335V
Contact Resistance
3 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Impedance
50Ω
Frequency Range (Max.)
6 GHz
VSWR
1.5 Max
Mechanical
Panel Mount Feature
N/A
Mounting Style
Riveting
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.2μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{9.007935 | tradeCurrencySymbol}}
20+
{{7.738953 | tradeCurrencySymbol}}
500+
{{7.516989 | tradeCurrencySymbol}}
1000+
{{7.136403 | tradeCurrencySymbol}}
5000+
{{6.94638 | tradeCurrencySymbol}}
stock 268 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F00SMA-P50P0SSP-02
SMA, Plug, 50Ohm, pin, 180° Vertical, Nut lock, Crimp
MPQ: 1000
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
