Where you are： TXGA Products RF Connector F00SMA-P50P0SSP-05

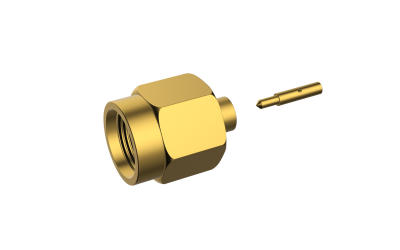

F00SMA-P50P0SSP-05
Download page
SMA, Plug, 50Ω, pin, Vertical(180°), Riveting
Product Number：
F00SMA-P50P0SSP-05
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
SMA
Style
Plug
Number of Positions
1Circuit
Contacts Type
pin
Orientation
Vertical(180°)
Colour
White
 Electrical
Voltage(Max)
250V
Contact Resistance
3 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+125ºC
Impedance
50Ω
Frequency Range (Max.)
18 GHz
VSWR
1.2 Max
 Mechanical
Panel Mount Feature
N/A
Mounting Style
Riveting
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{21.834377 | tradeCurrencySymbol}}
20+
{{18.790797 | tradeCurrencySymbol}}
500+
{{16.592232 | tradeCurrencySymbol}}
1000+
{{14.743731 | tradeCurrencySymbol}}
5000+
{{13.551304 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 500
MOQ： 5

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F00SMA-P50P0SSP-05
SMA, Plug, 50Ω, pin, Vertical(180°), Riveting
MPQ： 500
MOQ： 5

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
