F01023-S50S0B0D-01
Download page

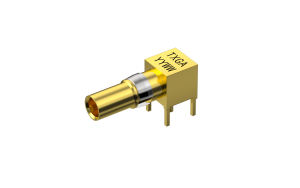

Din 1.0/2.3, Jack, 50Ω, socket, Right angle(90°), Through hole
Product Number:
F01023-S50S0B0D-01
Status:
Active
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
1.0/2.3
Style
Socket
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Right angle(90°)
Colour
White
Electrical
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Impedance
50Ω
Frequency Range (Max.)
4 GHz
VSWR
1.35 Max
Mechanical
Panel Mount Feature
N/A
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.05μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{24.24404 | tradeCurrencySymbol}}
5+
{{23.575238 | tradeCurrencySymbol}}
50+
{{20.221197 | tradeCurrencySymbol}}
100+
{{17.935936 | tradeCurrencySymbol}}
500+
{{17.46746 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 5

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F01023-S50S0B0D-01
Din 1.0/2.3, Jack, 50Ω, socket, Right angle(90°), Through hole
MPQ: 1
MOQ: 5

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
